Firewall Settings for Submitting Scores

Problem

Sometimes a computer based software firewall will block the Courseware from submitting information over the internet. This article explains how to configure the software firewall to allow the Courseware to operate normally.

Solution

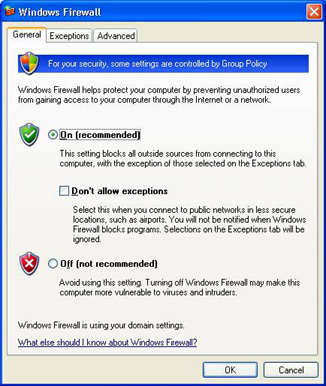

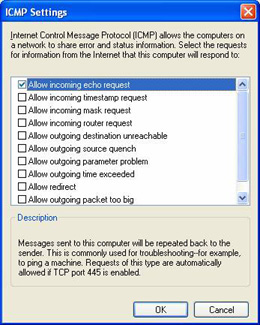

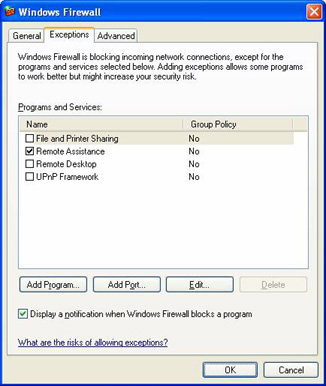

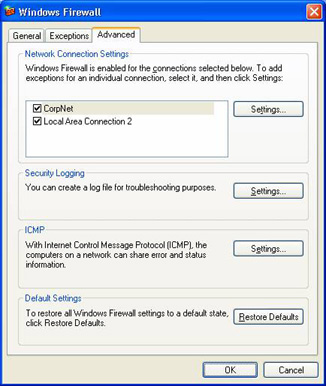

Using the Windows Firewall The settings for ICF in Windows XP with SP1 and Windows XP with no service packs installed consist of a single checkbox (the Protect my computer and network by limiting or preventing access to this computer from the Internet check box on the Advanced tab of the properties of a connection) and a Settings button from which you can configure excepted traffic, logging settings, and allowed ICMP traffic. Windows XP Service Pack 2 (SP2) includes the new Windows Firewall, which replaces the Internet Connection Firewall (ICF). Windows Firewall is a stateful host-based firewall that drops unsolicited incoming traffic that does not correspond to either traffic sent in response to a request of the computer (solicited traffic) or unsolicited traffic that has been specified as allowed (excepted traffic). Windows Firewall provides a level of protection from malicious users and programs that rely on unsolicited incoming traffic to attack computers on a network. In Windows XP SP2, there are many new features for Windows Firewall, including the following: Excepted traffic can be specified by application filename Built-in support for Internet Protocol version 6 (IPv6) traffic This page describes in detail the set of dialog boxes to manually configure the new Windows Firewall. Unlike ICF in Windows XP with Service Pack 1 (SP1) and Windows XP with no service packs installed, the configuration dialog boxes configure both IPv4 and IPv6 traffic. Step 1: Print this page.   Step 2: Open the windows firewall control panel.   Step 3: In Windows XP SP2, the check box on the Advanced tab of the properties of a connection has been replaced with a Settings button from which you can configure general settings, exceptions for programs and services, connection-specific settings, log settings, and allowed ICMP traffic. The Settings button launches the new Windows Firewall Control Panel applet, which is also available from the Network and Internet Connections and Security Center categories of Control Panel. The new Windows Firewall dialog box contains the following tabs: General Tab The General tab with its default settings is shown in the following figure. From the General tab, you can select the following: On (recommended) Select to enable Windows Firewall for all of the network connections that are selected on the Advanced tab. Windows Firewall is enabled to allow only solicited and excepted incoming traffic. Excepted traffic is configured on the Exceptions tab. Off (not recommended) Select to disable Windows Firewall. This is not recommended, especially for network connections that are directly accessible from the Internet, unless you are already using a third-party host firewall product. Notice that the default setting for Windows Firewall is On (recommended) for all the connections of a computer running Windows XP with SP2 and for newly created connections. This can impact the communications of programs or services that rely on unsolicited incoming traffic. In this case, you must identify those programs that are no longer working and add them or their traffic as excepted traffic. Many programs, such as Internet browsers and email clients (such as Outlook Express), do not rely on unsolicited incoming traffic and operate properly with Windows Firewall enabled.     Step 4: Exceptions Tab The Exceptions tab with its default settings is shown in the following figure. From the Exceptions tab, you can enable or disable an existing program (an application or service) or port or maintain the list of programs and ports that define excepted traffic. The excepted traffic is not allowed when the Donít allow exceptions option is selected on the General tab. With Windows XP with SP2, you can define excepted traffic in terms of TCP and UDP ports or by the file name of a program (an application or service). This configuration flexibility makes it easier to configure excepted traffic when the TCP or UDP ports of the program are not known or are dynamically determined when the program is started. You can create additional exceptions based on specifying a program name by clicking Add Program and exceptions based on specifying a TCP or UDP port by clicking AddPort.     Step 5: When you click Add Program, the Add Program dialog box is displayed from which you can select a program or browse for a programís file name. An example is shown in the following figure.     Step 6: Advanced Tab The Advanced tab is shown in the following figure.     All of the programs or services enabled from the Exceptions tab are enabled for all of the connections that are selected on the Advanced tab. The Advanced tab contains the Network Connections Settings. In Network Connection Settings, you can: Specify the set of interfaces on which Windows Firewall is enabled. To enable, select the check box next to the network connection name. To disable, clear the check box. By default, all of the network connections have Windows Firewall enabled. If a network connection does not appear in this list, then it is not a standard networking connection. Examples include some custom dialers from Internet service providers (ISPs). Configure advanced settings of an individual network connection by clicking the network connection name, and then clicking Settings. If you clear all of the check boxes in the Network Connection Settings, then Windows Firewall is not protecting your computer, regardless of whether you have selected On (recommended) on the General tab. The settings in Network Connection Settings are ignored if you have selected Don't allow exceptions on the General tab, in which case all interfaces are protected. When you click Settings, the Advanced Settings dialog box is displayed, as shown in the following figure.     From the Advanced Settings dialog box, you can configure specific services from the Services tab (by TCP or UDP port only) or enable specific types of ICMP traffic from the ICMP tab. ICMP In ICMP, click Settings to specify the types of ICMP traffic that are allowed in the ICMP dialog box, as shown in the following figure.     From the ICMP dialog box, you can enable and disable the types of incoming ICMP messages that Windows Firewall allows for all the connections selected on the Advanced tab. ICMP messages are used for diagnostics, reporting error conditions, and configuration. By default, no ICMP messages in the list are allowed. A common step in troubleshooting connectivity problems is to use the Ping tool to ping the address of the computer to which you are trying to connect. When you ping, you send an ICMP Echo message and get an ICMP Echo Reply message in response. By default, Windows Firewall does not allow incoming ICMP Echo messages and therefore the computer cannot send an ICMP Echo Reply in response. To configure Windows Firewall to allow the incoming ICMP Echo message, you must enable the Allow incoming echo request setting.     Step 7: Windows Firewall Notifications Applications can use Windows Firewall application programming interface (API) function calls to automatically add exceptions. When an application that does not use the Windows Firewall API runs and attempts to listen on TCP or UDP ports, Windows Firewall prompts a local administrator with a Windows Security Alert dialog box, an example of which is shown in the following figure.     The local administrator can choose one of the following: Keep Blocking Adds the application to the exceptions list but in a Disabled state so that the ports are not opened. Unsolicited incoming traffic for the application is blocked unless the local administrator specifically enables the exception on the Exceptions tab. By adding the application to the exceptions list, Windows Firewall does not prompt the user every time the application is run. Unblock Adds the application to the exceptions list but in an Enabled state so that the ports are opened. Ask Me Later Block unsolicited incoming traffic for the application and do not add it to the exceptions list. The local administrator will be prompted again the next time the application is run. To determine the path of the application from the Windows Security Alert dialog box, place the mouse pointer over the name or description of the application. The displayed tool tip text indicates the path to the application. If the user is not a local administrator, the Windows Security Alert dialog box informs the user that the traffic is being blocked, and to contact their network administrator for more information. Services do not prompt the user with a Windows Security Alert dialog box. Therefore, you should manually configure exceptions for them.
